Front Cover of the Book

Contributions from The Museum of History and Technology



Paper 61

Rembrandt's Etching Technique: An Example

Peter Morse

FIGURE 1

Landscape with a hay barn and a flock of sheep. Etching by Rembrandt, shown in original size.



---

Rembrandt's Etching Technique: An Example

A Rembrandt print in the collection of the Smithsonian Institution has been made the subject of a study of the artist's etching technique. The author is associate curator, division of graphic arts, in the Smithsonian Institution's Museum of History and Technology.

All footnotes appear at the end of this paper.

Rembrandt's print, Landscape with a hay barn and a flock of sheep,[1] is a singularly apt example of the variety of etching treatment used by the artist in his mature period.[2] The print, in black ink, 83 × 174 mm. in size (approximately 3-1/2 × 7 inches), is signed and dated 1650.[3] It shows a peaceful Dutch landscape along the Onderdijk Road on the south side of the Saint Anthony's Dike, only a short walk from Rembrandt's home in Amsterdam. The picture is, as usual, the mirror reversal of the actual scene.[4]

The observer's attention, from his raised position, is first drawn to the center of the print, attracted by the bright highlights on the trees and barn, then is snapped abruptly to the left side by the figure of the woman outlined against the sky. Now the eye moves slowly across the bottom, noticing the flock of sheep and the shepherd, and is led further by the soft dark line of the creek bank, to pick up the distant town and then the cows on the right. Only after completely circling the composition does one notice the horse, rolling in the grass and joyfully kicking its feet in the air.

Such artistic command seldom comes spontaneously. In Rembrandt's case, it is clearly the result of careful preparation, many years of learning and experience, and hard work in the creation of each picture. Such a process has produced in this print—one of nine landscapes which mark a turning point in 1650—a work of stylistic synthesis, which integrates Rembrandt's previous knowledge and leads on to his later masterpieces.

FIGURE 2

Mirror reversal of Landscape with a hay barn and a flock of sheep.

In 1650 Rembrandt was evidently in a tranquil state of mind. He was 44 years old. Young Hendrickje Stoffels, who had entered his household in 1645 as a maid, was well settled as housekeeper and mistress. Geertghe Dircx—who had been the nurse of Rembrandt's son, Titus, since the death of his wife, Saskia, in 1642—had just been taken to an institution after a nasty breach of promise suit.[5] Rembrandt's finances were in good shape; his insolvency was not to come until 1656, after the international economic crisis of 1653.[6] The artist certainly had the fullest confidence and experience in his working methods, having already done close to 250 prints.[7] This state of well-being is reflected in the fact that of the 27 prints Rembrandt did in the three years, 1650-1652, no fewer than 14 are landscapes of a serene character.[8] This is an unusually large proportion of a single subject and surely reflects the artist's state of mind, which helped him to produce this masterpiece of serenity, humor, and technical virtuosity.

His etching technique can be clearly studied in this print. In summary, all the evidence shows that Rembrandt here laid a foundation of lines on his plate with a single etching. He then mantled the sketch with rich drypoint lines, to give a sensitive chiaroscuro to the finished work. The integration of etching and drypoint is striking. There are few areas of this print (except the sky) that do not contain both kinds of line.

Rembrandt evidently had an excellent idea of his design before he ever touched the needle to the plate. Though he is often admired for his spontaneity, particularly in his landscapes,[9] this is a misconception. Benesch lists no fewer than 78 landscape drawings by Rembrandt in the years 1648-1650,[10] and there were perhaps many more, now lost or unidentified. For this etching alone, there are at least five likely preparatory drawings, each giving certain essential features of the final print. The most interesting is the Landscape with a Rolling Horse.[11] Here we see that the horse, apparently the happiest of impulsive inspirations, is instead a carefully considered part of the final design, copied from the drawing previously done on the spot. As the horse in the drawing is the mirror image of that in the print, we can feel certain that the drawing came first and not the etching. Two other drawings[12] (figures 4 and 5) delineate the clump of trees, in form and placement very similar to the print. A fourth[13] (figure 6) is a sketch of a hay barn of the type shown in the print, evidently quite common in the Dutch countryside, and a fifth[14] (figure 7) foreshadows the scheme of composition used in the print, principally the relationship of the road and the dark central mass. All these drawings are the mirror reversal of the print.

FIGURE 3

Landscape with a rolling horse. Drawing by Rembrandt. After Benesch, vol. 6, fig. 1444.

(Smithsonian photo 59391, with the permission of Phaidon Press, Ltd., and the Groningen Museum.)

FIGURE 4

A clump of trees. Drawing by Rembrandt. After Benesch, vol. 4, fig. 1001.

(Smithsonian photo 59392, with the permission of Phaidon Press, Ltd.)]

FIGURE 5

Farm building among trees. Drawing by Rembrandt.

(Photo courtesy of the Albertina Museum, Vienna.)

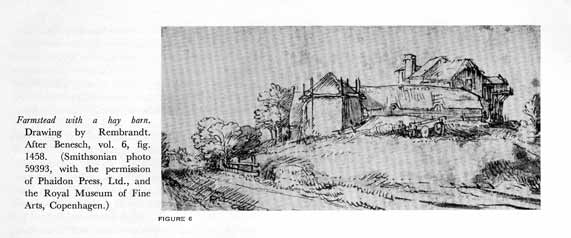

FIGURE 6

Farmstead with a hay barn. Drawing by Rembrandt. After Benesch, vol. 6, fig. 1458.

(Smithsonian photo 59393, with the permission of Phaidon Press, Ltd., and the Royal Museum of Fine Arts, Copenhagen.)

FIGURE 7

Farm buildings beside a road with distant farmstead. Drawing by Rembrandt.

(Photo courtesy of the Ashmolean Museum, Oxford.)

It is very much a modern taste to admire spontaneity more than craft. We must understand that Rembrandt's work was anything but spontaneous in execution. The existence of so many drawings prior to this print certainly suggests that Rembrandt collected his ideas from many sources, on the spot, but did his finished work in the quiet of his studio, with his notes ready at hand. He used the sketches as the raw material for a work of art. Rembrandt said that the only rule that should bind the artist is nature,[15] but he was certainly not distracted by nature. The individual genius here lies in assembling many observations from nature into a work which goes beyond nature and yet appears fresh and natural.

The metal plates he commonly used were of thin, cold-hammered copper, as shown by extant examples.[16] The hammering had the effect of making the metal harder than today's rolled copper sheets. This enabled more prints to be taken from the plate than is possible for a present-day printmaker. Today, we tend to consider drypoint a very fugitive medium, because the burr perishes so quickly under the pressure of the printing press. Rembrandt undoubtedly had fewer inhibitions about drypoint, for he could expect his harder copper to hold up longer, perhaps for as many as fifty excellent prints from the same plate. Hammered copper, unlike the modern rolled variety, is also completely free of grain in the metal. This enables a drypoint needle to move freely in any direction without encountering the resistance of a grain. Here again, Rembrandt had more incentive to use drypoint than a modern artist.

Rembrandt's etching ground has been the subject of considerable discussion. A book published in 1660, nine years before the artist's death, contains a recipe for "The Ground of Rinebrant of Rine."[17] This ground, similar to that described by Bosse as a "soft" ground,[18] consists of two parts wax, one part mastic, and one part asphaltum. There are countless formulae for such grounds, but virtually all are permutations of the same three ingredients, with only slight differences in the proportions.[19] The ground given as Rembrandt's is a thoroughly conventional one.

A knotty problem, however, is introduced by the last line of this 1660 description: "... lay your black ground very thin, and the white ground upon it. This is the only way of Rinebrant...."[20] No elaboration is given. This one line presents a number of problems, not all of which are soluble. To take it at face value is to accept the contemporary evidence that Rembrandt not only used a white ground but used it exclusively. This assertion cannot be taken uncritically.

It will readily be seen that a white ground might be of considerable assistance to an artist. His needle penetrates the white to the copper, giving the familiar effect of a reddish ink line on white paper. A normal ground, without treatment, is virtually transparent, making the etcher's lines rather difficult to see.[21] The most usual procedure, both in the 17th century and today, is to smoke the ground and incorporate the soot with the ground by heating the plate slightly. This gives a black ground, against which the lines appear light, the negative of the ultimate print. The black ground is favored, both out of long-established tradition and because it is very easy to apply. Furthermore, artists today explain that they also enjoy the feeling of working slightly blind, that one of their greatest rewards is the sense of surprise in peeling the first proof print off the plate. For whatever reason, the black ground has been preferred by the great majority of artists, both past and present.

The description of Rembrandt's ground in 1660 takes knowledge of the white ground for granted. Its technique certainly appears to have been generally well known among artists in the middle of the 17th century. Rubens, in a letter as early as 1622, mentions having received a recipe for a white ground, although he could not remember it.[22] The first technical explanation of the process appeared in Bosse's pioneer treatise in 1645.[23] There is no reason why Rembrandt should not have known of the white-ground technique and every reason to suppose that he did.

There is one piece of strong evidence that he did use a white ground about 1631. One of Rembrandt's drawings exists which, unlike most of his sketches is an exact prototype (in reverse) of a specific etching, Diana at the Bath.[24] The back of this drawing is covered with black chalk, and its lines show the indentation of tracing. The only reasonable explanation of this evidence is that Rembrandt placed his prepared drawing on top of a white-grounded plate and traced the lines, depositing the black chalk lines on the ground, where he could then trace them with his etching needle. Another similarly indented drawing—for the portrait of Cornelis Claesz Anslo—has been held to show the same procedure as late as 1641. This drawing, however, is backed, not with black chalk as previously cited, but with ocher tempera.[25] Although surely used for tracing, this gives perhaps even more evidence of his use of a black ground rather than white, although ocher lines would show on either. These conclusions are not meant to imply in any way that Rembrandt used the tracing of a drawing for his Landscape with a hay barn.... There is every probability that he did not do so. The implication is rather that only where a traced drawing with black backing exists do we have circumstantial evidence for the use, and possibly a more general use, of white ground. Without the published recipe no question would be likely to arise that Rembrandt used anything but the standard black ground. With it, we must search for corroboration.

Though the case must be left as "not proven," the use of a white etching ground is consistent with Rembrandt's practice of using the simplest effective means for achieving his artistic aims. The distinctive quality of the print under consideration here is the artist's remarkable placement and articulation of areas of black against the white paper. Rembrandt may have found it far easier to visualize this ultimate effect by using a white background for dark lines on his plate, rather than the negative.

Rembrandt almost certainly made all the etched lines in this print in a single operation. The lines were put on the plate before it went into the acid. The plate was then etched by the acid in a single biting, without stopping-out. The evidence for these assertions comes from the print itself, as we have no direct testimony in the matter.

In the first place, the etched lines must be distinguished from the drypoint lines applied at a later stage. The differences between the types of line are more easily seen than described. The etched line is clear and strong, from the clean biting of the acid. It is freer and more autographic because it is drawn through a wax surface, not scratched in a resisting metal surface.

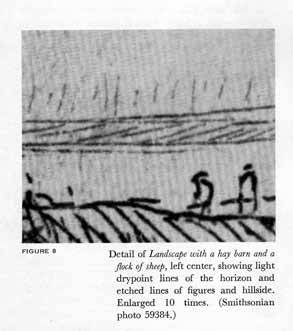

FIGURE 8

Detail of Landscape with a hay barn and a flock of sheep, left center, showing light drypoint lines of the horizon and etched lines of figures and hillside. Enlarged 10 times. (Smithsonian photo 59384.)

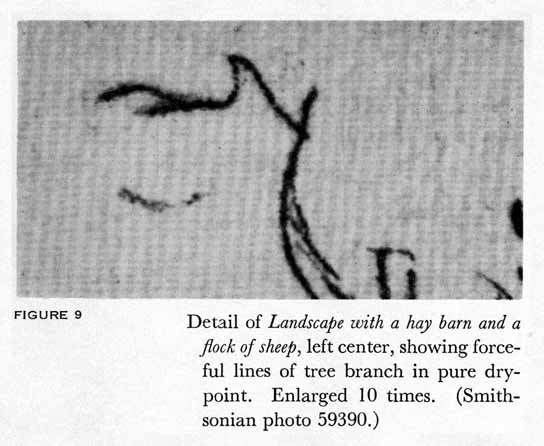

FIGURE 9

Detail of Landscape with a hay barn and a flock of sheep, left center, showing forceful lines of tree branch in pure drypoint. Enlarged 10 times.

(Smithsonian photo 59390.)

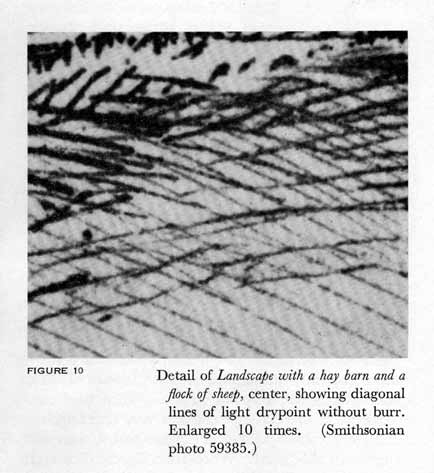

FIGURE 10

Detail of Landscape with a hay barn and a flock of sheep, center, showing diagonal lines of light drypoint without burr. Enlarged 10 times.

(Smithsonian photo 59385.)

The drypoint line, by its nature, is more abrupt and forceful, showing the quality of having been scratched rather than drawn. There are two basic drypoint lines, depending upon the position in which the drypoint needle is held. When it is vertical or nearly so, the resulting line is shallow and prints more weakly and distantly than the etched line. When the needle is pulled at an angle of about 30° to 60°, a very perceptible furrow of copper burr is thrown up on one or both sides of the line on the plate. This burr holds more ink than the clear channel and prints with a highly distinctive inky richness. Basically, etching removes metal from the plate entirely, whereas drypoint displaces it in furrows of burr. The rich fuzzy line produced by the burr is what we most typically associate with drypoint work. The first sort, the thin distant line, is nevertheless just as truly drypoint as the latter and is distinguishable by its forcefulness and clear direction.[26] The same line may also be created, with slightly more work, by using a scraper to remove the burr from a rich drypoint line.

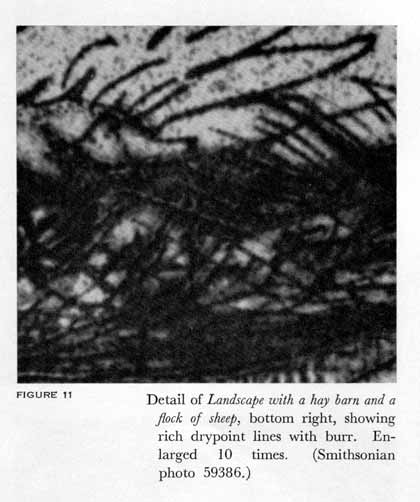

FIGURE 11

Detail of Landscape with a hay barn and a flock of sheep, bottom right, showing rich drypoint lines with burr. Enlarged 10 times.

(Smithsonian photo 59386.)

Another way of making lines in a plate is with a burin—an instrument with a sharp triangular point—which is pushed through the copper, instead of being pulled, as is the drypoint needle. When used conventionally, the burin produces a very characteristic hard, controlled printed line, one which does not appear in this print. When used lightly, however, its line is virtually indistinguishable from that of the vertical drypoint needle. It is quite possible that Rembrandt used the burin in some of his work on this and other prints, but it seems a somewhat less likely tool than the drypoint. First, the non-etched lines in this print seem to have a more freely moving quality than could probably be produced with a burin, a rather stiff, if extremely precise tool. Second, when Rembrandt was commissioned in 1665 to engrave a portrait expressly with a burin, he found himself unable to do so.[27] His inability, however, may be attributed as easily to Rembrandt's artistic independence as to his inexperience with the burin. Rembrandt's general use of the burin has been widely accepted. The question may not be that simple. These visible differences, then, enable us to separate the kinds of line within this print.

The author has attempted, by tracing only the etched lines in the print, to recreate the state of the plate after Rembrandt's etching and before the application of drypoint (figure 12). It can be seen that Rembrandt's etched lines form only a foundation or skeleton for the finished work. It is in no sense complete in itself. More important, the picture lacks all the rich contrasts of light and shade which distinguish this print and most of Rembrandt's finished work.

FIGURE 12

Traced sketch by the author, showing only the etched lines in Rembrandt's print, Landscape with a hay barn and a flock of sheep.

(Smithsonian photo 59398.)

It has been generally assumed that Rembrandt went through a fairly normal process of stopping-out and also re-etching in the course of his print-making. The visual evidence would indicate that he did not follow this procedure here. Stopping-out is, of course, a means of creating variations in the printed intensity of etched lines. After a plate has etched for a certain time—depending on the artist's inclination—it may be removed from the acid and some of its lines covered with a stop-out varnish, similar in texture and acid resistance to the basic ground. The plate is then put back in the acid and the remaining lines etched more deeply. This can be repeated any number of times, giving a wide range of intensity to the various etched lines. No such wide range of etched lines appears in the finished print. Further, where the edge of applied stop-out varnish crosses a single line, the change in depth of acid biting at that point is readily visible. Again, no such change of depth of a single line is visible here. The inference, unless attributed to very long coincidence, seems probable that Rembrandt used only a single acid etch on the entire plate, with no stopping-out.

Re-etching also seems unlikely. If the original ground has been removed from a plate, the entire plate must be re-grounded, without smoking or whitening, so that the previously etched lines show through. Noticeably heavier etched lines appear at only a few places on this plate, principally in the grass at the lower right. It is probable that Rembrandt used a number of etching needles of different widths. We do not see the typical changes in the lines produced by stopping-out or re-etching. Re-etching of new lines crossing previously etched lines often causes a slight penetration of acid under the ground into the old lines. This shows in the printing as a dark spot at the point of crossing. Such an effect is not found in this print. A similar result in the cross-hatching at the lower left is caused instead by drypoint lines crossing etched lines.

No direct evidence has been found concerning the acid corrosive used by Rembrandt to bite his plate.[28] Only tentative conclusions can be drawn from this and other prints. The etched lines in the Landscape with a hay barn ... appear to be bitten with a fairly strong acid. The lines are relatively broad in relation to their depth, a strong-acid effect. Furthermore, illustrations of some of Rembrandt's original plates from this period show a similar broad line.[29] In addition, in the photograph (figure 14) of at least one of the plates there is seen a peculiarly ragged line which is often caused by bubbles formed on the plate by acid action.[30] This appearance of bubbles is characteristic only of the strong acids. Of the acid formulae suggested by Bosse in 1645, only one—a distillate of vitriol, saltpeter, and alum—appears to be strong enough to produce the observed effects.[31] Generally speaking, Rembrandt's later etchings show evidence of stronger acid biting than his earlier work, which has more of the characteristics of weak mordants.[32] Certainly, a strong acid would produce a much speedier biting and bolder etched lines, providing him with a solid foundation for his fine drypoint work, and enabling him to work continuously, with a minimum of delay.

FIGURE 13

Detail of Rembrandt's finished print, Landscape with a hay barn and a flock of sheep, lower right, showing lines of pure etching. Enlarged 10 times.

(Smithsonian photo 59387.)

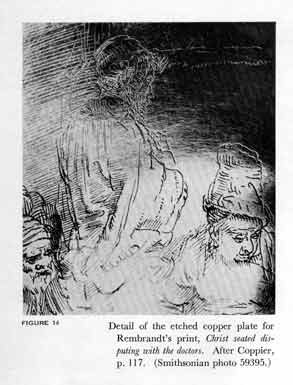

FIGURE 14

Detail of the etched copper plate for Rembrandt's print, Christ seated disputing with the doctors. After Coppier, p. 117.

(Smithsonian photo 59395.)

FIGURE 15

Detail of Rembrandt's finished print, Landscape with a hay barn and a flock of sheep, far right, showing drypoint drawing of sheep and post. Enlarged 10 times. (Smithsonian photo 59388.)

Rembrandt's use of drypoint is, as Jakob Rosenberg says, "the most important innovation in Rembrandt's mature graphic work."[33] After etching his skeletal design on the plate, he went to work with his drypoint needles—long, stiff, iron instruments—sharpened to a fine point. An artist generally has several available, so that he does not have to stop and re-sharpen in the course of his work. Rembrandt evidently went even further and deliberately used dull needles to obtain certain light line effects.

When the finished print is compared with the sketch of the etched lines alone, it can be seen how vital the drypoint is to Rembrandt's whole conception. The needle held vertically and slightly dulled, for instance, produced the light shadings on the central hillock at lower left. The sharp needle, held at an angle, threw up the burr which printed as the rich blacks on both sides of the hay barn, along the bank of the stream, and on the road at left center. The sheep and post at the far right were completely drawn

with drypoint, as was the shepherd of the flock at left center (figure 16). It is interesting to note that the flock originally had two shepherds, evidently a man and a woman, standing at the center of the road and behind the flock.[34] These figures were drawn in the ground and etched in the first stage of the print. Rembrandt then must have decided that their proportion was wrong for his composition. He reworked the area, using a scraper or burnisher to flatten out his etched lines, and covered the remaining ghosts of the figures with a mesh of drypoint cross-hatching. He then added the single small figure of the shepherd boy entirely in drypoint.

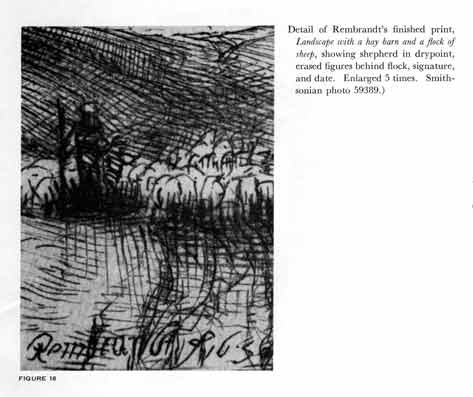

FIGURE 16

Detail of Rembrandt's finished print, Landscape with a hay barn and a flock of sheep, showing shepherd in drypoint, erased figures behind flock, signature, and date. Enlarged 5 times.

(Smithsonian photo 59389.)

Houbraken, writing in 1718, talked of Rembrandt's technical secrets, "which he would not let his pupils see."[35] In truth, there are no secrets to this artist's technique in the etching medium. But his mastery of the art goes far beyond communicable secrets.

---

FOOTNOTES

---
